Customizable Stainless Steel Heat Resistant Auger Screw Feeder and Spiral Conveyor for Industrial Use

Customizable Stainless Steel Heat Resistant Auger Screw Feeder and Spiral Conveyor for Industrial Use

Nombre De La Marca:	WeSeW
Número De Modelo:	KF001-2
Cuota De Producción:	1 pieza
Precio:	US$800~US$8,000 per pc
Condiciones De Pago:	T/T, Unión Occidental
Capacidad De Suministro:	10.000 piezas por mes

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Porcelana

Certificación:

CE/UL

Material:

Acero inoxidable

Característica del material:

Resistente al calor, resistente al fuego

Solicitud:

Industria química, Transporte de granos, Transporte minero, Central eléctrica

Industrias aplicables:

Planta de fabricación, construcción

Informe de prueba de maquinaria:

Proporcionó

Componentes principales:

Cojinete, caja de cambios, motor

Dimensión (largo* ancho* alto):

Personalizado

Diámetro de la espiral:

Personalizar

Especificación:

Personalizado

Personalización:

Solicitud personalizada disponible

Detalles de empaquetado:

caja de madera

Capacidad de la fuente:

10.000 piezas por mes

Descripción del producto

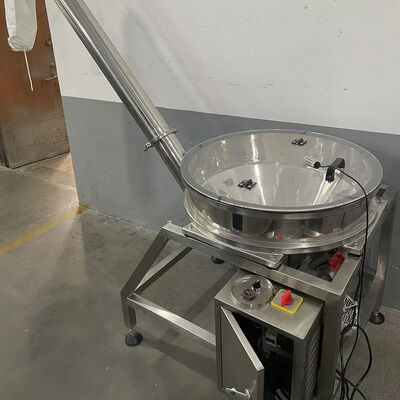

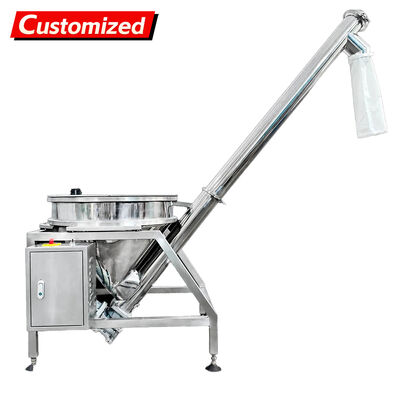

Custom SUS304 Auger Screw Vibrating Inclined Feeder Round Bucket Feeder Conveyor

This customizable SUS304 stainless steel spiral vibrating inclined feeder conveyor is specifically designed for industries with high hygiene requirements such as food processing and plastics manufacturing. It primarily handles the lifting and conveying of powdery materials. The entire machine is constructed from 304 stainless steel, meeting industry clean production standards.

Core Structure and Configuration Features

Feeding System: Equipped with a circular hopper and built-in vibration device to prevent powdery materials from bridging and clogging, ensuring continuous and smooth feeding. The hopper volume can be adjusted according to production capacity requirements, with a standard configuration of 180L.

Conveying Structure: Utilizes a spiral lifting design, supporting inclined feeding. The standard inclination angle is 45°, customizable within the range of 30°-60° according to project needs. Conveying pipe diameters are available in 89mm, 114mm, and 133mm specifications. Lifting heights are customizable from 1-5m, with support for even greater heights.

Convenient Design: Employs a quick-release connection structure, making daily cleaning and maintenance very convenient. A semi-open design is also available to adapt to different process scenarios.

Technical Specifications

Parameter	Specification
Rated Conveying Capacity	Up to 2.3 cubic meters per hour
Power Configuration	Three-phase 380V 1.5KW
Electric Vibrator	55W
Total Weight	130KG
Construction	Compact structure with strong installation adaptability
