Custom Industrial-Grade Coaxial Helical Gear Motor with High Torque Output Wide Input Speed Range and Durable Construction

Custom Industrial-Grade Coaxial Helical Gear Motor with High Torque Output Wide Input Speed Range and Durable Construction

Nombre De La Marca:	WeSeW
Cuota De Producción:	1 Uds.
Precio:	US$200~US$1000/pc
Condiciones De Pago:	T/T, Unión Occidental
Capacidad De Suministro:	10.000 piezas por mes

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Porcelana

Certificación:

CE,UL

Nombre del producto:

Motor reductor de engranajes de velocidad ajustable

Tensión nominal:

220V/380V

Solicitud:

Granjas, comercio minorista, talleres de materiales de construcción, plantas de fabricación, tallere

Detalles de empaquetado:

caja de madera

Capacidad de la fuente:

10.000 piezas por mes

Resaltar:

High Torque Output Coaxial Helical Gear Motor

Wide Input Speed Range Adjustable Speed Gear Reducer Motor

Durable Construction Bevel Motor Gearbox

Descripción del producto

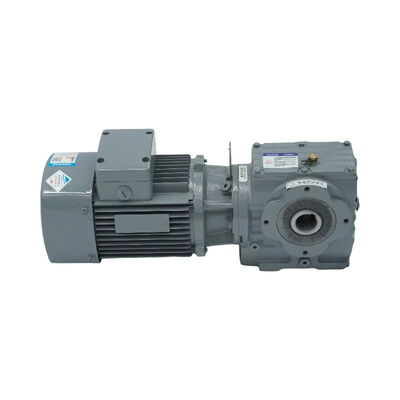

Custom Industrial-Grade Coaxial Helical Gear Motor

This high-performance 380V 50Hz AC gear motor features an integrated brake system and delivers exceptional torque output up to 2430 N.M. Designed for demanding industrial applications, it offers reversible operation with output speeds ranging from 0-180 RPM.

Technical Specifications

Gearing Arrangement	Helical Bevel
Output Speed Range	0-180 RPM
Output Torque Range	1.8-2430 N.M
Input Speed Range	0-1500 RPM
Motor Type	K167 KF167 KA167 KAF167
Mounting Position	Flange or Foot Mounted
Weight	1122 KG
Applicable Industries	Energy & Mining
Customization Support	OEM

Key Performance Features

High-Torque Output: Delivers up to 2430 N.M torque for robust machinery performance
Wide Input Speed Range: Operates efficiently between 0-1500 RPM for versatile applications
Durable Construction: Manufactured in China with Jiangsu quality standards for long-lasting reliability
Energy Sector Optimized: Specifically designed for demanding energy and mining applications
Cost-Effective Operation: Suitable for low minimum order quantities with energy-efficient performance

Advanced Design Features

Modular Design: Transmission mechanism facilitates easy adaptation to various motor types and power input devices
High Efficiency: Single unit transmission efficiency reaches up to 96% for optimal power utilization
Precise Speed Control: Multiple unit combinations enable larger transmission ratios and lower output speeds
Flexible Installation: Can be mounted horizontally in any position or via flange connection for versatile integration

Product Images
