Customized Stainless Steel Ribbon Mixer for High Efficiency Powder Blending in Various Industries

Customized Stainless Steel Ribbon Mixer for High Efficiency Powder Blending in Various Industries

Nombre De La Marca:	WeSeW
Número De Modelo:	Porcelana
Cuota De Producción:	1 unidad
Precio:	US$5500~US$70,000 per pc
Condiciones De Pago:	T/T, Unión Occidental
Capacidad De Suministro:	10.000 piezas por mes

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Porcelana

Certificación:

CE/UL

Material:

Acero inoxidable/personalizado

Característica del material:

Resistente al calor, resistente al fuego

Solicitud:

Industria química, Transporte de granos, Transporte minero, Central eléctrica

Componentes principales:

Motor

Dimensión (largo* ancho* alto):

personalizado

Especificación:

personalizado

Nombre del producto:

Mezclador de tambor de acero inoxidable

Detalles de empaquetado:

caja de madera

Capacidad de la fuente:

10.000 piezas por mes

Resaltar:

Stainless Steel Ribbon Mixer

Customized Powder Mixing Machine

High Efficiency Stainless Steel Mixer

Descripción del producto

Custom Ribbon-Type Powder Mixer

High-efficiency stainless steel ribbon mixer designed for blending various powder products including plastics, chemicals, food, and fertilizers. Features porous design and customizable specifications.

Product Specifications

Model	SH-100L
Total Volume	100L
Effective Volume	40-70L
Power	1.5 kW
Spindle Speed	15-40 r.p.m
Dimensions (LWH)	17006001500mm
Weight	250 kg
Material Options	SUS304, SUS304L, SUS316, SUS316L, Carbon Steel
Voltage	220V, 380V or optional
Warranty	1.5 years

Key Features

Easy to operate with simple controls
High efficiency mixing with dual ribbon design
Suitable for various powder materials
Stainless steel construction for durability
Customizable specifications available

Technical Overview

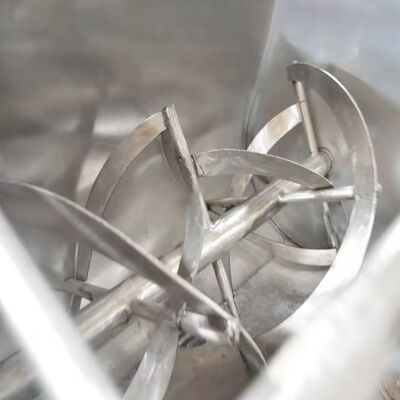

The horizontal ribbon mixer utilizes internal and external spiral ribbons to create optimal material movement. The inner spiral pushes material from the center to the sides, while the outer spiral moves material from the sides to the center, creating efficient convection circulation. This design ensures rapid, uniform mixing of various powder products in minimal time.
