Detalles de los productos

En casa. Productos

Custom OEM Flexible Star Couplings with 2000n-m Rated Torque 5000 RPM Maximum Speed and Lubrication-Free Maintenance for Shaft Couplings

Nombre De La Marca:	WeSeW
Número De Modelo:	Las partidas de los demás materiales
Cuota De Producción:	1 Uds.
Precio:	US$5~US$50 per pc
Condiciones De Pago:	T/T, Unión Occidental
Capacidad De Suministro:	10.000 piezas por mes

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Porcelana

Certificación:

CE, ISO9001/UL

Nombre:

Acoplamientos flexibles en estrella

OEM/ODM:

Servicio de mecanizado de torneado de fresado CNC OEM ODM

Capacidades materiales:

Metales de aluminio, de cobre amarillo, de bronce, de cobre, endurecidos

Solicitud:

Máquinas para cortar metales, máquinas para enderezar metales, máquinas para hilar metales, piezas d

Estándar:

ESTRUENDO, ASTM, GOST, GB, JIS, ANSI, BS

Mecanizado CNC o no:

mecanizado cnc

Micro mecanizado o no:

Micromecanizado

Método de procesamiento:

Dibujo de ingeniería del cliente

Detalles de empaquetado:

caja de madera

Capacidad de la fuente:

10.000 piezas por mes

Resaltar:

2000n-m Rated Torque Flexible Star Couplings

5000 RPM Maximum Speed Shaft Couplings

Lubrication-Free Maintenance Spider Couplings

Descripción del producto

Custom OEM Flexible Star Couplings

High-performance flexible star couplings designed for pump shaft applications, available in KTRS Rotex Gr 42, 75, 55 configurations with spider claw design and multiple connection options including hole keyway and spline.

Technical Specifications

Applicable Industries	Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction Works, Energy & Mining, Agricultural
Material	Steel
Standard or Nonstandard	Standard
Structure	Jaw / Spider
Warranty	1 Year
Bore Diameter	30MM
Maximum Speed	5,000 RPM
Rated Torque	2000 N·m
Type	Flexible

Product Features & Benefits

Flexible flower-shaped couplings are elastic couplings widely used in mechanical transmission systems, featuring compact structure and stable performance suitable for various operating conditions.

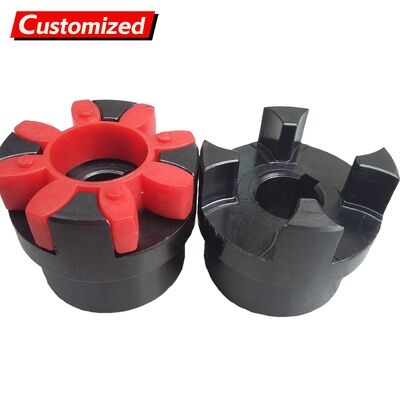

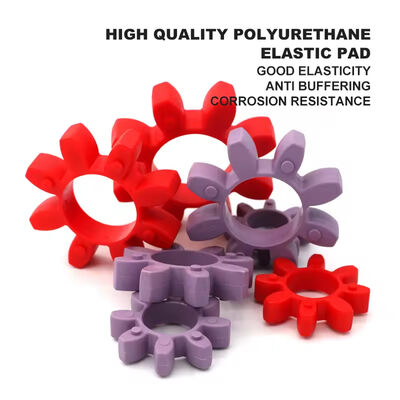

Structural Composition: Consists of two metal claw discs and a plum-shaped elastomer (typically polyurethane or rubber), transmitting torque through engagement between elastomer and claw discs
Vibration Damping: Elastomer effectively absorbs vibration and shock loads, reducing operational noise and protecting transmission systems
Strong Misalignment Compensation: Compensates for axial, radial, and angular installation deviations, accommodating minor misalignment scenarios
Lubrication-Free Maintenance: Requires no lubrication, resists oil contamination, and provides electrical insulation for harsh environments
Wide Application Range: Commonly used in servo motors, pumps, compressors, and automation equipment, particularly suited for medium-to-high speed applications with frequent starts and stops

Product Images
