Custom Stainless Steel Drum Mixer Dry-Wet Mixing Equipment Weighing Hopper Platform Drum Mixer - Weighing Hopper for Food, Pharmaceutical, and Chemical Industries

Name: Custom Stainless Steel Drum Mixer Dry-Wet Mixing Equipment Weighing Hopper Platform Drum Mixer - Weighing Hopper for Food, Pharmaceutical, and Chemical Industries
Brand: Guangzhou Kaixi Wisdom Valley Technology Co.,Ltd
SKU: Porcelana
Price: 2,785.00 USD
Availability: InStock

Nombre De La Marca:	WESEW
Número De Modelo:	Porcelana
Cuota De Producción:	1 unidad
Precio:	US$5500~US$70,000 per pc
Condiciones De Pago:	T/T, Unión Occidental
Capacidad De Suministro:	10000 conjuntos por mes

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Porcelana

Certificación:

ce/ul

Material:

Acero inoxidable/personalizado

Característica de material:

Resistente al calor, resistente al fuego

Solicitud:

Industria química, transporte de granos, transporte minero, planta de energía

Componentes principales:

Motor

Dimensión (largo* ancho* alto):

Personalizado

Especificación:

Personalizado

Nombre del producto:

Mezclador de tambor de acero inoxidable

Detalles de empaquetado:

caja de madera

Capacidad de la fuente:

10000 conjuntos por mes

Resaltar:

stainless steel drum mixer

weighing hopper mixer equipment

dry-wet mixing machine

Descripción del producto

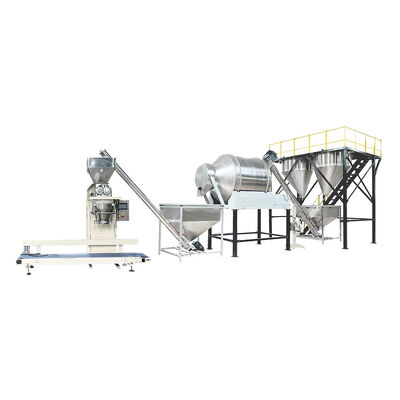

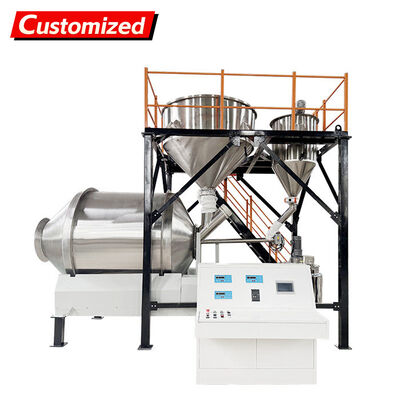

Custom Stainless Steel Drum Mixer with Weighing Hopper

Our custom stainless steel drum mixer with integrated weighing hopper platform combines precision weighing and efficient mixing capabilities for the food, pharmaceutical, and chemical industries. This advanced equipment features optimized roller design for smooth operation and automated material management, enhancing production efficiency and data accuracy.

Equipment Functions

Weighing Function

Accurately measures weight of powdered, granular, or lumpy materials
Automatically controls feed rates based on preset weight parameters
Provides reliable data for automated material management systems

Mixing Function

Drum rotation creates tumbling action for convective mixing
Continuous rotation enhances material uniformity and distribution
Internal structures optimize material trajectories for efficient blending
Compartmentalized designs enable zone-by-zone mixing before full-batch blending

Industry Applications

Food Industry

Ensures precise weighing and mixing according to food formulation requirements, maintaining quality and nutritional content while meeting diverse production needs.

Pharmaceutical Industry

Weighs active ingredients and excipients with gentle blending to guarantee drug content accuracy. Enables strict quality control and prevents efficacy issues from composition deviations.

Chemical Industry

Precisely weighs high-purity raw materials for coatings, compound fertilizers, and chemical products. Fine-tuned mixing processes enhance product quality and market competitiveness.

Technical Specifications

Model	HDJX-60	HDJX-70	HDJX-80	HDJX-95	HDJX-1080	HDJX-1290	HDJX-1450	HDJX-1600	HDJX-1800
Cylinder Diameter (mm)	600	700	800	950	1080	1290	1450	1600	1800
Total Cylinder Length (mm)	970	1100	1160	1380	1560	1950	2375	2520	2800
Usable Volume (L)	60	100	120	200	316	530	900	1180	2300
Feed Port Height (mm)	1100	1200	1200	1300	1400	1420	1800	custom	custom
Discharge Port Height (mm)	400	400	400	400	400	400	400	custom	custom
Cylinder Wall Thickness (mm)	1.5	1.8	1.8	1.8	2.4	2.5	3.0	4.0	5.0
Operating Voltage (V)	220/380	220/380	220/380	380	380	380	380	380	380
Motor Power (kW)	0.4	0.4	0.55	3	3	4	3	4	5.5
Overall Dimensions (mm)	1500×660×1300	1500×760×1400	1500×860×1400	2100×1050×1650	2100×1150×1750	2500×1500×2100	3200×1650×2450	3600×1850×2500	4300×2100×2100

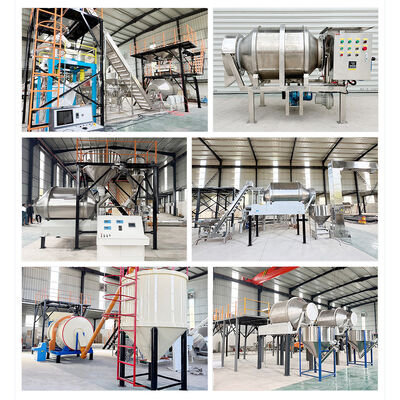

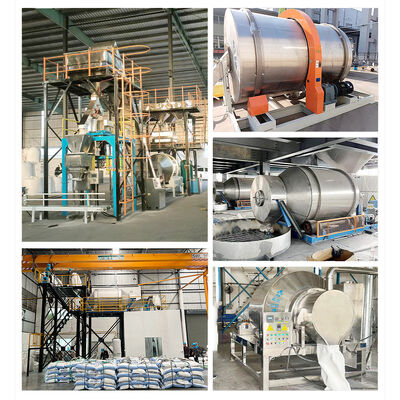

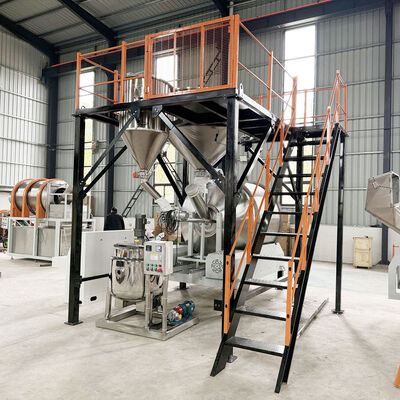

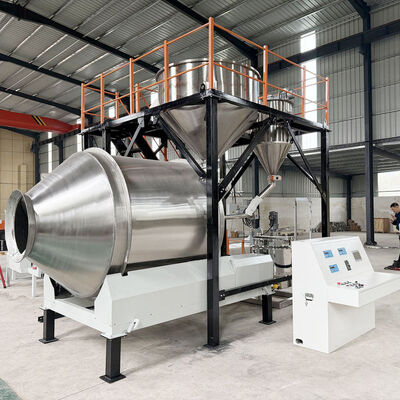

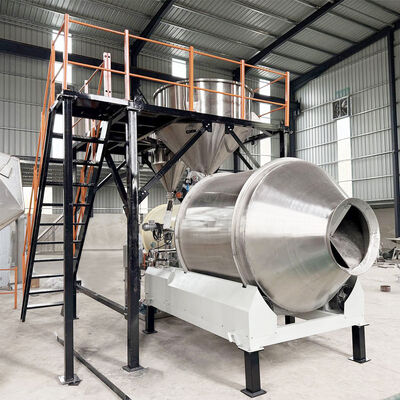

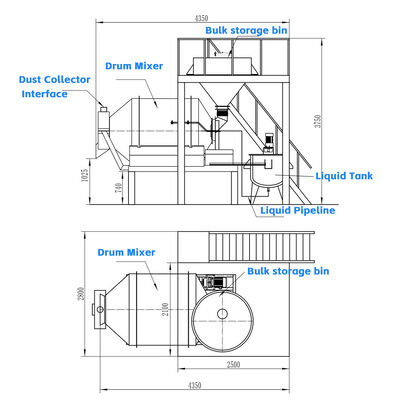

Product Gallery
