Custom-made fully enclosed pipeline chain conveyor industrial tubular conveyor, suitable for cement, flour, and ash plant manufacturers.

Custom-made fully enclosed pipeline chain conveyor industrial tubular conveyor, suitable for cement, flour, and ash plant manufacturers.

Nombre De La Marca:	WESEW
Número De Modelo:	W003
Cuota De Producción:	1 Uds.
Precio:	US$75000~US$20,000/set
Condiciones De Pago:	T/T, Unión Occidental
Capacidad De Suministro:	100 conjuntos por mes

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Porcelana

Certificación:

Material:

Acero carbono

Característica de material:

Resistente al calor, resistente al fuego

Aplicación:

Industria química, transporte de granos, transporte minero, planta de energía

Industrias aplicables:

Planta de fabricación, energía y minería

Componentes principales:

Motor, motor

Dimensión (largo* ancho* alto):

Personalizado

Especificación:

Personalizado

Estructura:

Transportador de cadena

Detalles de empaquetado:

caja de madera

Capacidad de la fuente:

100 conjuntos por mes

Descripción del producto

Custom-made fully enclosed pipeline chain conveyor industrial tubular conveyor, suitable for cement, flour, and ash plant manufacturers.

The fully enclosed pipeline chain conveyor is an advanced powder transport system. It drives the chain and attachments through sprockets within a sealed pipeline, smoothly pulling materials forward. Specifically engineered for handling various fine powders and dusty materials, it provides an ideal solution for dust-free, high-efficiency conveying.

Its core advantages are detailed as follows:

Absolute Dust-Free Sealing: Materials are transported entirely within sealed pipelines, fundamentally eliminating dust leakage to safeguard both the work environment and product quality.

Robust and Durable Construction: Featuring heavy-duty structural design, the conveying chain exhibits high strength and excellent wear resistance, ensuring extended equipment lifespan and exceptional reliability.

Flexible and Stable Layout: Conveying routes can be configured horizontally, inclined, or vertically, adapting flexibly to complex factory layouts and enabling three-dimensional space transportation.

Low Maintenance Costs: With few moving parts, a simple structure, and low failure rates, routine maintenance is straightforward, significantly reducing long-term operational expenses.

Energy-Efficient and Adaptable: Features stable conveying speeds and low power consumption; demonstrates excellent adaptability to most powdered materials, particularly suited for long-distance, high-capacity transportation.

Key Features and Benefits

Highly efficient, fully enclosed continuous transport system
Uses chains to drive discs that pull materials through pipelines
Completely sealed conveyance eliminates dust leakage entirely
Environmentally friendly with zero pollution
Option to fill with inert gas for sensitive material protection

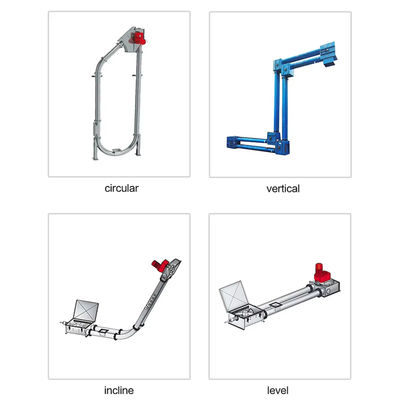

Flexible 3D layout accommodates horizontal, vertical, and curved routing
Handles powders, granules, small lumps, and pastes with stable performance
Steep incline and vertical lifting capabilities
Compact structure with low energy consumption
Ideal for chemical, plastic, and food industries

Product Images

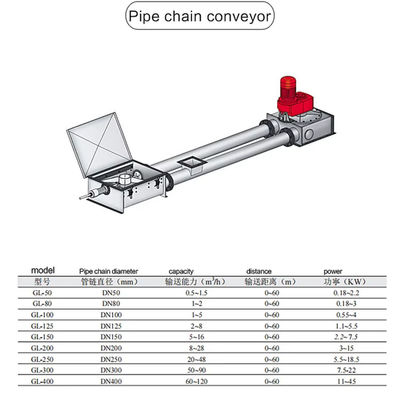

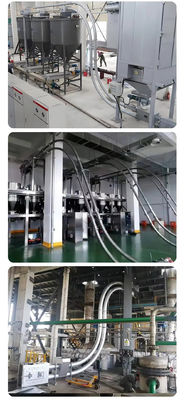

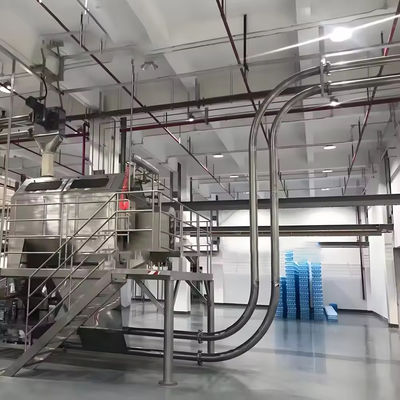

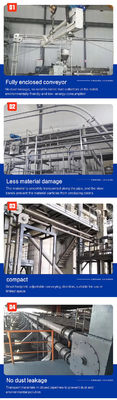

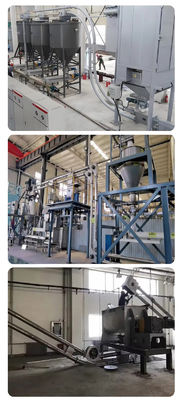

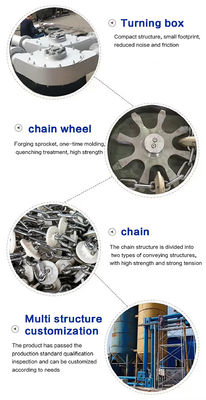

Custom-made fully enclosed pipeline chain conveyor industrial tubular conveyor, suitable for cement, flour, and ash plant manufacturers. 0

Custom-made fully enclosed pipeline chain conveyor industrial tubular conveyor, suitable for cement, flour, and ash plant manufacturers. 1

Custom-made fully enclosed pipeline chain conveyor industrial tubular conveyor, suitable for cement, flour, and ash plant manufacturers. 2

Custom-made fully enclosed pipeline chain conveyor industrial tubular conveyor, suitable for cement, flour, and ash plant manufacturers. 3

Custom-made fully enclosed pipeline chain conveyor industrial tubular conveyor, suitable for cement, flour, and ash plant manufacturers. 4

Custom-made fully enclosed pipeline chain conveyor industrial tubular conveyor, suitable for cement, flour, and ash plant manufacturers. 5

Custom-made fully enclosed pipeline chain conveyor industrial tubular conveyor, suitable for cement, flour, and ash plant manufacturers. 6

Custom-made fully enclosed pipeline chain conveyor industrial tubular conveyor, suitable for cement, flour, and ash plant manufacturers. 7

Custom-made fully enclosed pipeline chain conveyor industrial tubular conveyor, suitable for cement, flour, and ash plant manufacturers. 8

Custom-made fully enclosed pipeline chain conveyor industrial tubular conveyor, suitable for cement, flour, and ash plant manufacturers. 9
