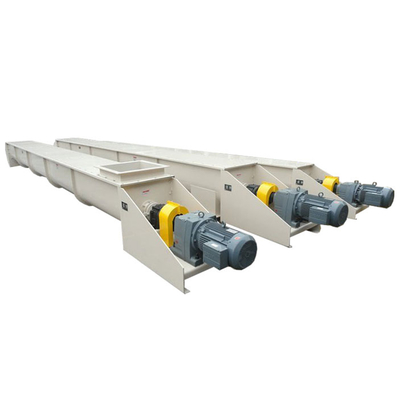

Custom hot High Ice Cooling Screw Auger Conveyor Professional for High Temperature Jacket Thermal Screw Conveyor

Nombre De La Marca:	WeSeW
Número De Modelo:	Acceso a las instalaciones
Cuota De Producción:	1 PC
Precio:	US$8000~US$30,000/set
Condiciones De Pago:	T/t, unión occidental
Capacidad De Suministro:	100 conjuntos por mes

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

China.

Certificación:

Aplicación:

Transporte de tornillo térmico

Industrias aplicables:

Agricultura, talleres de reparación de maquinaria, planta de fabricación

SERVICIO:

OEM/ ODM

Tratamiento superficial:

Personalizado

Dimensión (L*W*H):

Personalizado

Característica:

Alta precisión, calidad alimenticia

Paquete de transporte:

Bolsa, cartón, estuche de madera, personalizado

Servicio postventa:

Proporcionar

Garantía:

1 año

Tipo:

Taladro

Personalización:

Petición personalizada disponible

Detalles de empaquetado:

Estuche de madera

Capacidad de la fuente:

100 conjuntos por mes

Descripción del producto

Custom hot High Ice Cooling Screw Auger Conveyor Professional for High Temperature Jacket Thermal Screw Conveyor

Belt Material	Stainless Steel
Material	Stainless Steel, Carbon Steel
Special Feature	Durable
Condition	New
Dimension(LWH)	Customized
Layer	1 Layer
Speed	Adjustable
Applicable Industries	Manufacturing Plant
Voltage	380 V, 440 V, 480 V
Warranty	1 Year
Product name	Heated Auger Conveyor
productivity	500L/Hour
weight (kg)	150
Processing Type	filtration
Power	380V/440/As request
Voltage	5kw,7.5kw,11kw

Heat Transfer Screw Processors

During the processing of many bulk materials, there is a requirement to cool, heat, or maintain a specific product temperature while conveying the product. The desired temperature fluctuations must be calculated and engineered into the system to accomplish the preferred objectives. Heat Transfer Screw Processors are the perfect solution for these applications.

Heat Transfer Screw Processors indirectly transfer heat to or from bulk materials by introducing a heat transfer medium such as cool water, hot oil or steam through a special trough jacket and/or center pipe and hollow flights. Cooling or heating a bulk material to a desired exit temperature is accomplished by the surface area of the screw processor and designing the system flow to match the heat load requirements of the application.

Heat Transfer Screw Processors are very cost-effective when compared to other methods of heat transfer. designs and manufactures Heat Transfer Screw Processors to meet the needs of many industries, such as Chemical, Minerals Processing, Food, Power and Wastewater Treatment.

Heat Transfer Screw Processors are referred to by many different names:
