Detalles de los productos

En casa. Productos

Customized Auger Drilling Rig, Auger Drilling Rig, Rotary Drilling Rig Single-Flute Straight Auger Bit (Toothed) For construction in clay layers, highly weathered layers, and gravel layers

Customized Auger Drilling Rig, Auger Drilling Rig, Rotary Drilling Rig Single-Flute Straight Auger Bit (Toothed) For construction in clay layers, highly weathered layers, and gravel layers

Nombre De La Marca:	WeSeW
Número De Modelo:	RG-717
Cuota De Producción:	1 unidad
Precio:	Price Negotiation
Condiciones De Pago:	T/T, Unión Occidental
Capacidad De Suministro:	1000000 unidades por mes

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Porcelana

Certificación:

CE,UL

Dirección de rotación:

En sentido horario/antihorario

Tipo de tornillo:

Helicoidal o seccional

fortaleza:

Alta resistencia a la tracción

Industrias aplicables:

Planta de fabricación, energía y minería

Uso:

Transportador

Modo de operación:

Manual o automático

Ángulo de inclinación:

0-45 grados

Características:

Diseño flexible, fácil de limpiar

Detalles de empaquetado:

Caja de madera

Capacidad de la fuente:

1000000 unidades por mes

Resaltar:

single-flute straight auger bit

auger drilling rig for clay

rotary drilling rig with toothed bit

Descripción del producto

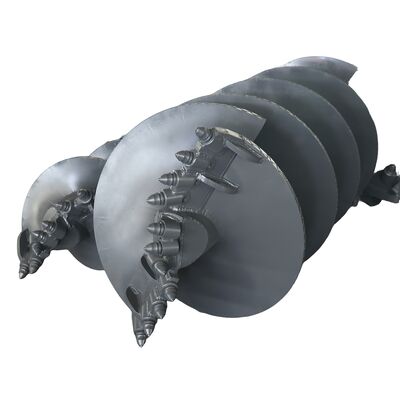

Customized Auger Drilling Rig - Single-Flute Straight Auger Bit (Toothed)

Professional rotary drilling rig auger bit designed for efficient construction in clay layers, highly weathered layers, and gravel layers.

Product Specifications

Warranty: 2 Years

Quality Assurance: Video outgoing-inspection & Machinery Test Report Provided

Applicable Layers: Clay, high-weathered layer, gravel, etc.

Drilling Diameter: 600-2000 mm

Spiral Height: 1500 mm

Weight: Customized as requested

Bottom Type: Double bottom and double cut, Single bottom and double cut

Key Advantage: High Performance

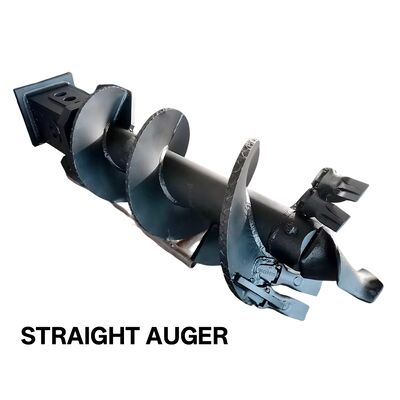

Straight Auger Design Features

Straight type design optimized for efficient soil carrying capacity
Double cutter configuration ensures uniform force distribution and prevents hole inclination
Dual spiral design facilitates soil transport; single spiral configuration ideal for cohesive soil dumping
Versatile application across various geological layers including clay, weathered formations, and gravel

Note: All measurements in millimeters (mm); weight in kilograms (kg)

Technical Specifications Table

Pile Dia. (mm)	Spiral HIT. (mm)	Spiral Pitch (mm)	Spiral THK. (mm)	Spiral OD. (mm)	Teeth No.	Weight (kg)
φ600	1500	600+400	30+20	550	6	550
φ800	1500	600+400	30+20	750	9	800
φ900	1550	600+500	30+20	850	10	850
φ1000	1500	600+600	30+20	950	11	900
φ1200	1500	600+600	30+30	1150	13	1250
φ1500	1500	600+600	30+30	1450	16	1750
φ1600	1500	600+600	30+30	1550	17	1900
φ1800	1500	600+600	35+30	1750	21	2600
φ2000	1500	600+600	35+30	1950	22	3050
