Custom Screw Conveyor U-Shaped Twin-Screw Mixer with Rotating Blades for Food, Chemical, Pharmaceutical, and Construction Materials Industries

Custom Screw Conveyor U-Shaped Twin-Screw Mixer with Rotating Blades for Food, Chemical, Pharmaceutical, and Construction Materials Industries

Nombre De La Marca:	WESEW
Número De Modelo:	Porcelana
Cuota De Producción:	1 unidad
Precio:	US$5500~US$70,000 per pc
Condiciones De Pago:	T/T, Unión Occidental
Capacidad De Suministro:	10000 conjuntos por mes

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Porcelana

Certificación:

ce/ul

Material:

Acero inoxidable/personalizado

Característica de material:

Resistente al calor, resistente al fuego

Solicitud:

Industria química, transporte de granos, transporte minero, planta de energía

Componentes principales:

Motor

Dimensión (largo* ancho* alto):

Personalizado

Especificación:

Personalizado

Personalización:

Petición personalizada disponible

Detalles de empaquetado:

caja de madera

Capacidad de la fuente:

10000 conjuntos por mes

Resaltar:

U-shaped twin-screw mixer for food industry

Custom screw conveyor with rotating blades

Powder mixing machine for pharmaceutical materials

Descripción del producto

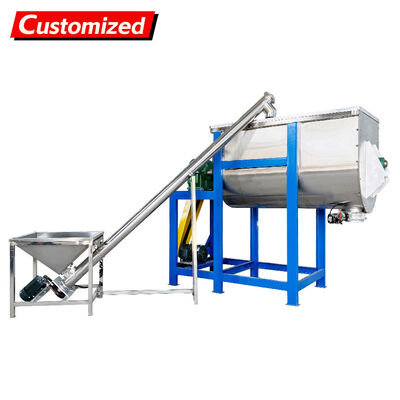

Custom Screw Conveyor U-Shaped Twin-Screw Mixer with Rotating Blades

This advanced powder mixing equipment integrates a screw conveyor with a U-shaped twin-screw mixer to create an efficient material handling system. The screw conveyor utilizes rotating spiral blades to transport powdered and granular materials from lower to higher elevations, while the U-shaped twin-screw mixer employs a dual-screw configuration for comprehensive three-dimensional tumbling and mixing, ensuring uniform blending of multi-component substances to meet stringent process requirements across various industries.

Key Functions

Material Conveyance: Screw conveyor elevates powdered or granular materials from lower levels to the U-shaped mixer through rotating spiral blades, enabling precise directional material transfer
Mixing and Blending: U-shaped mixer thoroughly mixes and blends conveyed materials, ensuring uniform incorporation of different components to meet specific production process requirements for material homogeneity

Application Areas

Food Industry: Mixing powdered or granular food ingredients including milk powder, seasonings, and flour to ensure uniform product composition and enhanced quality
Chemical Industry: Blending various chemical raw materials such as coatings, pigments, and plastic pellets to guarantee stable performance of chemical products
Pharmaceutical Industry: Blending drug powders and excipients during drug formulation production, ensuring uniform drug composition and compliance with pharmaceutical quality standards
Building Materials Industry: Manufacturing dry-mix mortar, putty powder, and other building materials by uniformly blending cement, sand, additives, and other components to enhance material performance

Technical Specifications

Model	HCJX-200	HCJX-300	HCJX-500	HCJX-1000	HCJX-2000
Available Volume (L)	430	580	880	1600	2700
Operating Voltage (V)	220/380	220/380	380	380	380
Motor Power (KW)	3	3	5.5	7.5	11.5
Spindle Speed (rpm)	25	25	25	23	22
Cylinder Wall Thickness (mm)	2	2	2	2.5	3
Single Mixing Time (min)	3-6	4-6	6-9	8-12	10-15
Discharge Port Diameter (mm)	133	159	159	219	219
Cylinder Dimensions (mm)	1150660710	1320760810	1250850900	189010501100	220012501300
Overall Dimensions (mm)	20167421249	22988461424	25639581624	350011581950	380014002350
